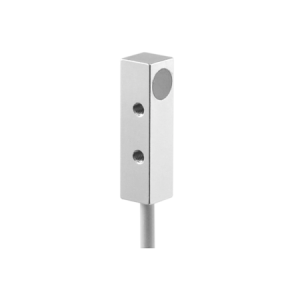

Magnetic proximity switches MFFM 08N1424/PL

Technical data

general data

type

• magneto-resistive

assured sensing distance Sa

• 60 mm

output indicator

• LED red

mounting type

• flush

nominal operation point

• 2,5 mT

hysteresis

• 2 … 20 % of Sr

repeat accuracy

• < 1 % of Sr

electrical data

switching frequency

• < 5 kHz

voltage supply range +Vs

• 10 … 30 VDC

current consumption max. (no load)

• 20 mA

voltage drop Vd

• < 3 VDC

output current

• < 150 mA

output circuit

• NPN make function (NO)

short circuit protection

• yes

reverse polarity protection

• yes, Vs to GND

mechanical data

material (sensing face)

• PBT

type

• rectangular

dimension

• 8 mm

housing material

• brass nickel plated

housing length

• 30 mm

connection types

• cable PUR, 2 m

ambient conditions

operating temperature

• -25 … +75 °C

protection class

• IP 67
